Engineering for the Elements:  Managing Heavy Wind Loads with Trapeze & Tension Banner Hardware

A banner may look lightweight, but in strong winds it can behave more like a sail. As wind pushes against its surface, that pressure creates forces that travel through the banner, mounting arms, hardware, and supporting pole. The larger the banner, the greater the surface area exposed to those forces.

Wind pressure also increases approximately with the square of wind velocity, meaning a relatively modest increase in wind speed can result in a much greater load on the banner system. Add sudden gusts, shifting wind direction, and turbulence around buildings, and banner hardware must respond to forces that are constantly changing.

For municipal streets, university campuses, shopping centers, parking areas, and other exposed environments, this makes wind response an important consideration—especially as late-fall and winter weather approaches.



Managing Wind Through Controlled Movement

It may seem logical that the strongest banner system is one that moves as little as possible. But when dealing with wind, rigidity is only part of the equation.

With a rigid system, wind pressure acting on the banner is transferred through relatively fixed components to the mounting points and supporting structure. Spring-loaded banner arms take a different approach by allowing controlled movement as conditions change.

When a gust pushes against the banner, the spring mechanism allows the arm to flex rather than remain completely fixed. This helps the system accommodate changing wind pressure and can reduce peak stresses on the banner and hardware. As the pressure subsides, the arm returns toward its normal position.

WIND LOAD → BANNER MOVEMENT → ARM FLEX → LOAD MANAGEMENT → RETURN

This does not make a banner system wind-proof. Banner size and material, mounting configuration, site exposure, installation, and local wind conditions all influence performance. Spring-loaded hardware is one part of a properly planned installation.



Trapeze & Tension Banner Hardware

Sign Bracket Store’s Trapeze and Tension banner hardware offers spring-loaded options for outdoor banner installations where changing wind conditions are a concern.

By allowing controlled movement under wind pressure, these systems can help manage the forces placed on banners and mounting hardware while maintaining the intended presentation during normal conditions.

The appropriate hardware depends on banner dimensions, pole type, mounting requirements, and site conditions. Locations with significant wind exposure may require additional project-specific evaluation.

Where Wind-Responsive Banner Hardware Matters

Wind exposure can vary considerably from one property to another. A banner on a protected streetscape may experience very different forces from one installed beside an open parking lot.

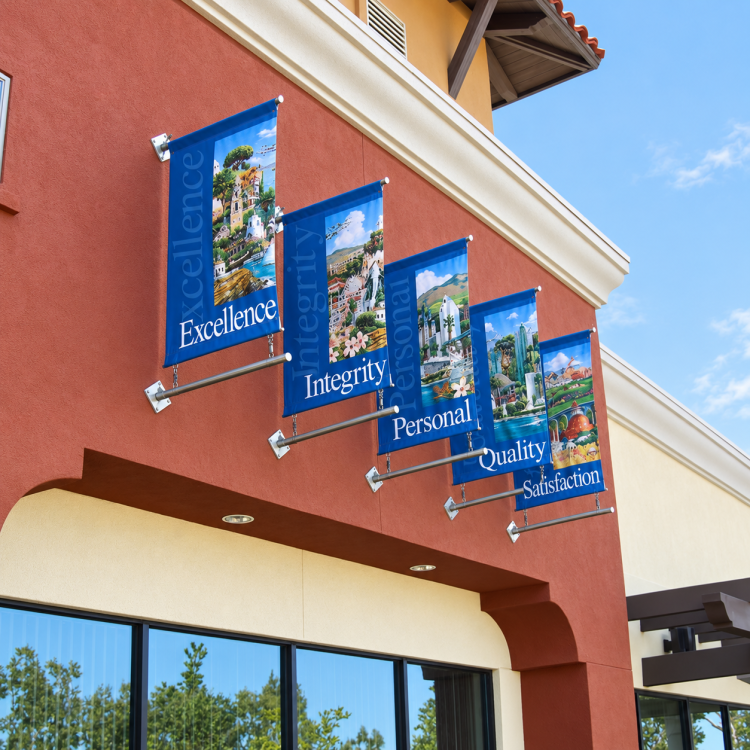

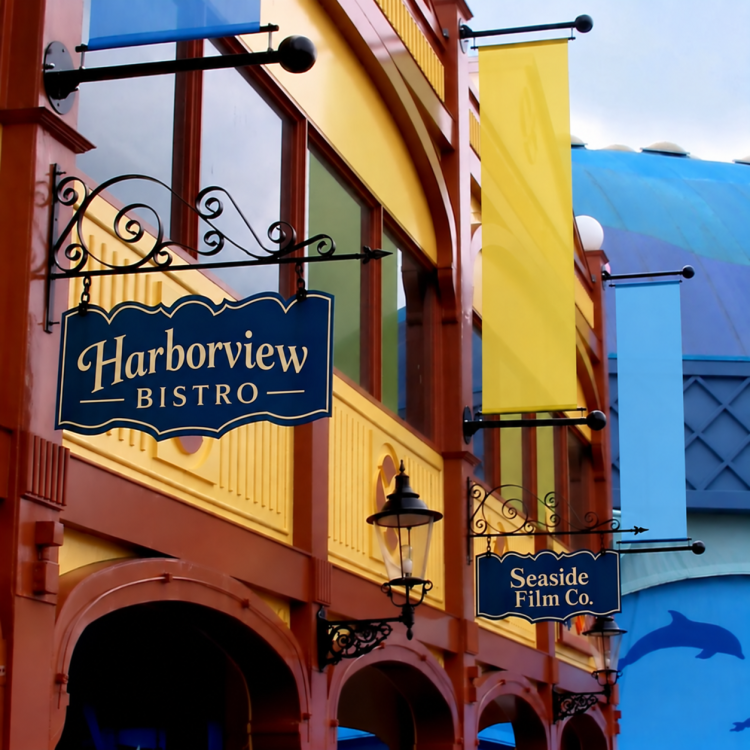

Wind-responsive hardware can be particularly useful for municipal streets and downtown districts, university and corporate campuses, parking areas, shopping centers, mixed-use developments, and hospitality properties—especially in open or exposed locations.

Buildings can also alter airflow. Corners, passages between structures, and open plazas can accelerate or redirect wind, creating localized conditions that may place additional forces on banner installations.



Preparing Banner Systems for Late-Fall and Winter Weather

As late fall and winter approach, changing weather and stronger seasonal winds make this a good time to evaluate existing banner installations.

Are banners securely attached? Are spring-loaded arms and mounting components functioning as intended? Are there signs of excessive movement, wear, deformation, or stress?

Seasonal banner changes are also an opportunity to confirm that replacement banners remain appropriate for the existing hardware. Installing a larger banner, for example, increases the surface area exposed to wind and can change the forces placed on the system.

Checking these details before seasonal windstorms arrive can help ensure banner hardware is ready to respond as intended when conditions become more demanding.



Planning a new banner installation or evaluating an existing system?

Explore Sign Bracket Store’s banner hardware and find the mounting solution that fits your application.
